Shrewd Atlas Hoyt Single Adjustable Sidebar Mount*

  • Price: AUD$251.81
  • Ex Tax: AUD$228.91
  • Availability: Out of Stock
  • Model: Shrewd Atlas Hoyt Single Adjustable Sidebar Mount*

Available Options:


Shrewd Atlas Hoyt Single Adjustable Sidebar Mount*

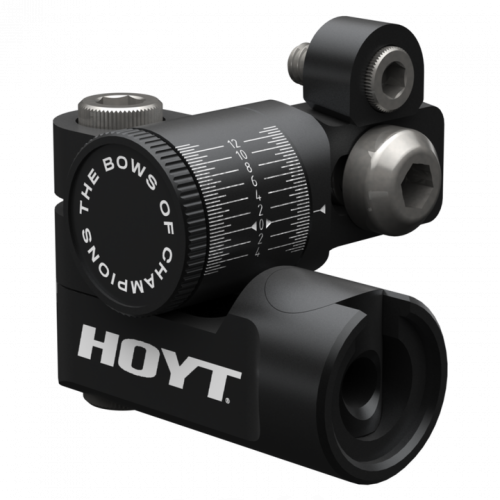

Hoyt Atlas Sidebar Adapter

Designed specifically for Hoyt's unique, two-hole mounting system to ensure a rigid and secure connection. The Hoyt Atlas features a top mounting bar with 8° tapered edges and a mating wedge piece with a matching 8° angle. With the top bar mounted to the riser using the 5/16"-24 hole, the wedge is secured to the riser using the 1/4"-20 hole found above or below the top bar and when tightened the two pieces lock together.
  • FEATURES:
    • HYBRID CLAMP-TAPER SYSTEM PRODUCES AN ULTRA-STRONG V-BAR
    • INTEGRATED QUICK DISCONNECT (1” DIAMETER) MAKES INSTALLING AND REMOVING A REAR STABILIZER EFFORTLESS.
    • FEATURES PRECISION, LASER ENGRAVED INDICATOR LINES FOR REPEATABILITY AND PEACE OF MIND.
    • CNC MACHINED ALUMINUM
    • FEATURES A UNIQUE TOP BAR AND WEDGE THAT LOCK AGAINST ONE ANOTHER AND PREVENT THE V-BAR FROM DROPPING.
    • INCORPORATES SHREWD’S ANTI-WALKOUT WASHER SYSTEM TO PREVENT ANY STABILIZER WALKOUT IN THE INTEGRATED QUICK DISCONNECT.
    • INDEPENDENTLY ADJUSTABLE HORIZONTAL AND VERTICAL AXIS.
    • COATED WITH A DURABLE ANODIZED FINISH TO SEAL AND PROTECT ALL MACHINED ALUMINUM COMPONENTS.
    • CONSTRUCTED USING ALL STAINLESS-STEEL HARDWARE WITH A 1/4" HEX KEY SOCKET FOR DURABILITY.
    • RECONFIGURABLE TO MOUNT ON THE FRONT OR BACK OF THE RISER FOR BOTH LEFT AND RIGHT-HANDED SHOOTERS.
    • WORKS IN CONJUNCTION WITH SHREWD’S QUICK DISCONNECT (SOLD SEPARATELY) FOR ADDING A FRONT STABILIZER IF MOUNTING THE ATLAS TO THE TARGET SIDE OF THE RISER.
  • WEIGHT: 3.8 oz
  • INCLUDES:
    • ATLAS SINGLE V-BAR
    • FLUSH MOUNTING BARREL NUT
    • WEDGE LOCK
    • CUSTOM 5/16”-24 X 0.8” BOLT
    • 5/16”-24 X 1” SHCS
    • 5/16”-24 X 0.5” SHCS
    • 1/4"-20 x 1/2" SHCS
    • STAINLESS STEEL BUSHING
    • SELF-RETAINING WASHER
    • INSTRUCTIONS
  • WEDGE LOCK COMPATIBILITY:
    • PREVAIL
    • INVICTA
    • STRATOS
    • ALTUS HBT
  • THE HOYT SIDEBAR ADAPTER IS COMPATIBLE WITH ALL OTHER HOYT BOWS IF THE WEDGE LOCK IS NOT USED.
  • MADE IN THE USA
