Shibuya Ultima CPX IV Carbon Sight*

  • Price: AUD$607.33
  • Ex Tax: AUD$552.12
  • Availability: Pre Order
  • Model: Shibuya Ultima CPX IV Carbon Sight*

Available Options:

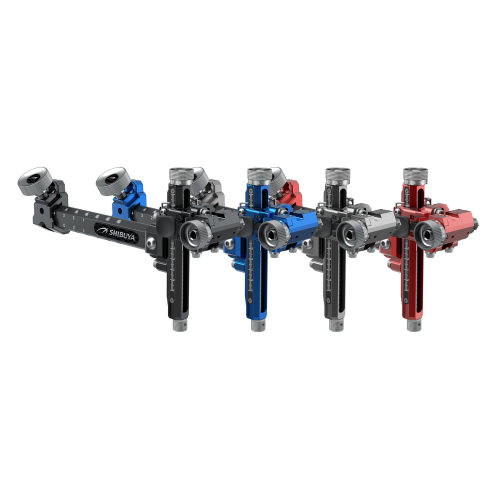

Shibuya Ultima CPX IV Carbon Sight*

Shibuya Ultima 4 Series
The Latest Compound sight from Shibuya Archery


** 400 Vertical / 6" or 9" Extension **


Rock Solid. Light Weight. The Gold Standard of 3D and Target Compound Sights.


Finer Adjustment — SHIBUYA’s Smallest Click Increment

Vertical and horizontal adjustments now move approximately 0.04 mm per click, an improvement from the previous model’s 0.05 mm.
This enables ultra-fine tuning to meet the micron-level precision demanded by competitive archers.


Zero Backlash — ZPE System Integration

The ZPE System, highly acclaimed in the CP PRO and CPX III series, is now adopted in the CP PRO G2 as well.
By optimizing the internal structure, true zero backlash has been achieved.
Even during reverse adjustments, each click responds firmly, allowing for more accurate sight calibration.


SIGHT SCALE PLATES

Both sides of ULTIMA CPX’s elevation bar feature recessed metal sight scale plates. Each ULTIMA CPX Ⅳ includes a blank plate and reference scale. 8 double-sided sight scale plates, for a total of 16 scale options, are available sold separately. Printed sight tapes can be used on the blank plate supplied.

FLAT SHELF INDICATOR PIN

The flat-shelf indicator pin on ULTIMA CPXⅣ sights is easy to adjust, closer to the sight tape surface than ever before, while still offering enough clearance for layered tapes. Both side pins are locked by a cap screw from the side, preventing accidental movements when locking them down!


TRIA-LOCK SYSTEM

Shibuya’s innovative Tria-Lock system keeps the scope rod approx. 1/2″ closer to the elevation bar than conventional target sights. This significantly reduces moment effected on the windage unit – a significant factor in development of play and faults!
The innovative new Tria-Lock system encloses the scope rod holder from three sides, keeping it perfectly aligned and without play to produce a rattle-free, zero-tolerance environment.


X-Lock System US Pat No. 7,287,335

Re-adjustable, zero-tolerance fit between the windage unit and sight frame. Super-slick and durable polyacetal resin guide spacers enclose the elevation rail, re-adjustable at the turn of a set screw. All parts field-adjustable and -replaceable!


Spec Table

Type400-6400-9
Extension Bar6-inch Carbon Extension9-inch Carbon Extension
Weight200g220g
Aperture Distance (APD)Max 187mm
Min 99mm		Max 264mm
Min 99mm
ElevationDrive SystemLockdown-less Screw Drive with Jump Mechanism
Length100mm (approx. 4 inches)
