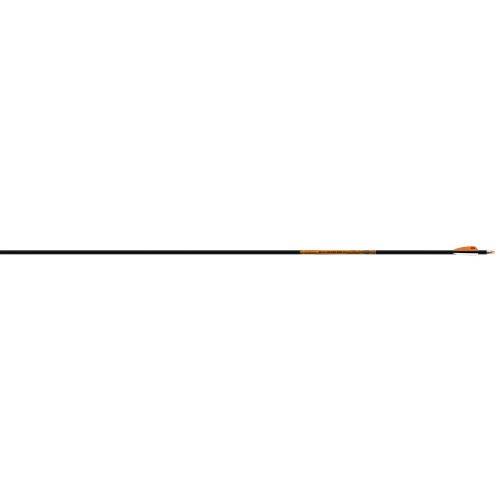

Easton Triumph Shaft 12*
Triumph is engineered for superior accuracy and performance in even the
toughest target materials, and every size Triumph is designed at the
maximum allowable diameter for World Archery competition. With a choice
of four sizes, three nock systems, and five point weights, there’s a Triumph
for every competitive bow style and required state of tune.
Triumph’s internal armor system provides a natural advantage in terms of
front-of-center balance, providing even more stability and accuracy,
without compromising dynamic spine.
Note: Triumph shafts are precision-cut and squared at the front for optimal
point alignment and fit, and should only be cut from the rear before nock
system installation and assembly. Cutting the shaft at the point end will
reduce the effectiveness of the internal armor system and potentially
decrease durability in hard targets. This will void warranty.
Cutting Instructions: Use only a high-speed, thin-blade pro shop saw for
cutting Triumph shafts. NOTE: Cut shafts ONLY from the rear, designated
by the printed gold band. DO NOT cut the end with the aluminum armor
Point Installation: Triumph shafts are compatible with the use of Easton
low-temperature hot melt cement for point installation. Easton
recommends use of a gel-type cyanoacrylate for UNI bushing installation,
and a small drop of hot melt for installation of PIN Nock adapters.
Straightness: ± .002”
Weight Tolerance: ± 1 grain
All sizes at World Archery maximum allowed 9.3 mm outside diameter
Black, smooth matte finish
Multi-layer wrapped carbon fibers
S or G UNI Bushing included
Pin nock adapter sold separately
Points fit all shaft sizes, sold separately, available weights: 100, 125, 150, 175 and
