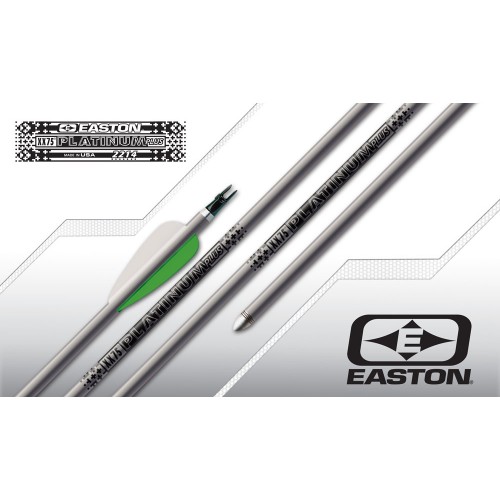

Easton XX75 Platinum Plus Complete Arrow 12*

Please note your Fletch and Nock Colors in the comment section when finalizing the order.

Made with Advanced Wraps and Flex Fletch 187 Vanes.

Platinum Plus is a premium, intermediate priced shaft for all levels of recreational and competitive archery.

SPECIFICATIONS

• 7075-T9 aerospace alloy
• Hard-anodized finish
• Guaranteed straightness: ± .002″
• Weight tolerance: ± 1%
• Strength (psi): 96,000
• Super or G UNI bushings—installed
• Components—sold separately

• Sizes: 1416, 1516, 1616, 1713, 1716, 1813, 1816, 1913, 1916, 2013, 2016, 2114, 2213, 2315

SIZE	SHAFT WEIGHT GPI	SPINE @ 28″ SPAN DEFLECTION IN INCHES	SHAFT O.D.  INCHES	STOCK LENGTH INCHES
1416	7.4	1.684	0.219	27.5
1516	7.3	1.403	0.234	28
1616	8.4	1.079	0.250	29
1713	7.4	1.044	0.266	29
1716	9.0	0.880	0.266	29
1813	7.9	0.874	0.282	30
1816	9.3	0.756	0.281	30
1913	8.3	0.733	0.298	31.5
1916	10.0	0.623	0.297	31
2013	9.0	0.610	0.313	32.5
2016	10.6	0.531	0.312	32
2114	9.9	0.507	0.328	31
2213	9.8	0.458	0.344	31.5
2315	11.7	0.342	0.365	32.5
