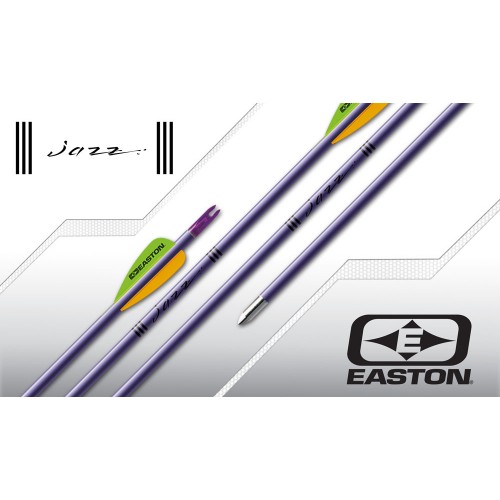

Easton XX75 Jazz Shaft 60*

Jazz features all the accuracy benefits of XX75 alloy and comes in sizes all the way down to 1214 to outfit any beginning archer.

SPECIFICATIONS

• 7075 aerospace alloy
• Hard-anodized finish
• Guaranteed straightness: ± .005″
• Weight tolerance: ± 2%
• Strength (psi): 90,000
• Precision-ground nock swage
• Components—sold separately

• Sizes : 1214, 1413, 1416, 1516, 1616, 1716, 1816, 1916, 2016

  *1214 size uses the direct-fit G Nock

SIZE	SHAFT WEIGHT GPI	SPINE @ 28″ SPAN DEFLECTION IN INCHES	SHAFT O.D.  INCHES	STOCK LENGTH INCHES
1214	5.9	2.501	0.197	26.5
1413	5.9	2.036	0.216	26
1416	7.4	1.684	0.219	27.5
1516	7.3	1.403	0.234	28
1616	8.4	1.079	0.250	29
1716	9.0	0.880	0.266	29
1816	9.3	0.756	0.281	30
1916	10.0	0.623	0.297	31
2016	10.6	0.531	0.312	32
